B-Series vs K-Series: Which Honda JDM Engine Is Right for Your Build?

When it comes to Honda engine swaps, two families dominate the conversation: the B-series and the K-series. Both are legendary in the JDM and tuner communities, but they serve very different purposes. Here's a breakdown to help you decide which is right for your build.

The B-Series: The OG Swap

The B-series (B16, B18, B20) has been the go-to Honda engine swap for over three decades. It's lightweight, proven, and there's an enormous aftermarket ecosystem around it.

• B16A: 1.6L DOHC VTEC. The JDM version produces around 170hp stock — more than the USDM equivalent. Ideal for light EG/EK Civics where power-to-weight matters most.
• B18C (Type R spec): 1.8L DOHC VTEC, high-compression, individual throttle body. One of the most sought-after B-series engines. Makes 197hp in JDM ITR trim.
• B20B/B20Z: 2.0L non-VTEC found in the JDM CR-V and Orthia. Popular for naturally aspirated builds that need displacement over RPM.

The K-Series: The Modern King

The K-series (K20, K24) is Honda's more modern DOHC i-VTEC family, found in the RSX, Civic Si, and Accord. It produces more power, has better torque across the rev range, and is the current foundation of most serious Honda builds.

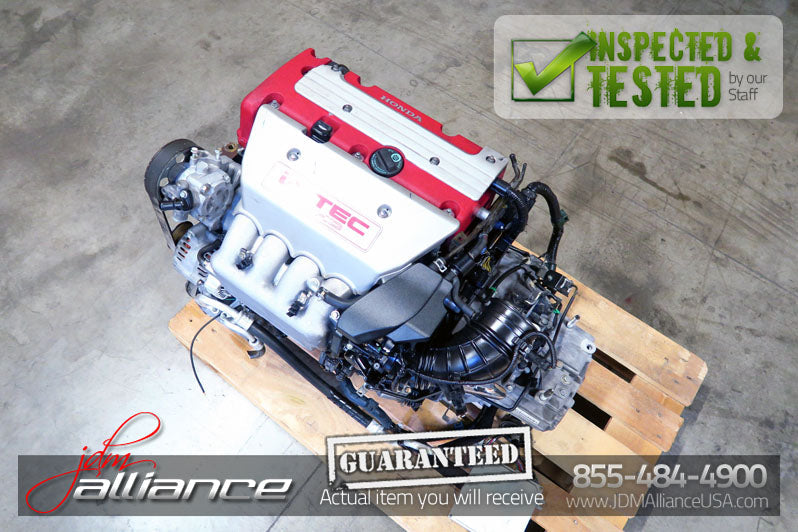

• K20A (Type R spec): 220hp from the factory in JDM DC5 Integra Type R trim. Exceptional top-end power with a 8,400rpm redline.
• K20A2: USDM RSX Type-S version, making 200hp. More available and slightly cheaper than the full JDM K20A.
• K24A: 2.4L torquier sibling. Common in Accord and Element swaps. Excellent for daily drivers and turbocharged builds.

Which Should You Choose?

Choose the B-series if you have an older EG/EK/DA chassis, want a simpler bolt-in swap, are on a tighter budget, or prefer the lighter weight for a track or autocross car.

Choose the K-series if you have a DC5, EP3, or newer chassis, want more power from the factory, plan to boost or build the motor seriously, or need more low-end torque for a heavier vehicle or daily driver.

JDM Advantage

In both cases, the JDM versions of these engines often outperform their USDM counterparts right out of the box, thanks to higher compression ratios and different tuning maps suited to Japan's higher-octane fuel. At JDM Alliance LLC, we stock both B-series and K-series engines with real photos and compression test results so you know exactly what you're getting. View our Honda engine inventory here.
