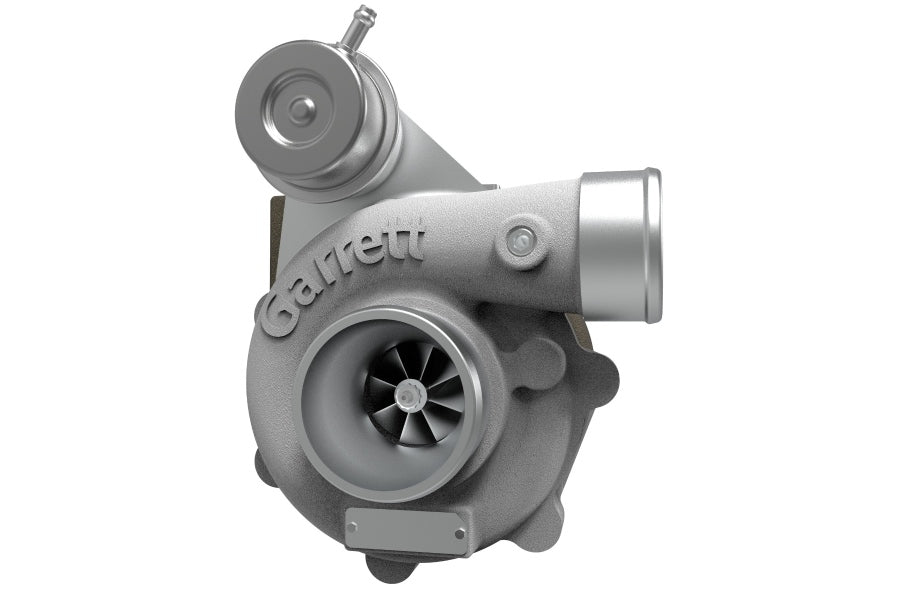

Garrett GBC20-300 Turbocharger (P/N 896053-5003S)
Brand new Garrett Boost Club Line GBC20-300 turbocharger. Designed for small displacement performance engines ranging from 0.8L–2.0L and capable of supporting 170–300 horsepower. Features a forged fully-machined 39mm compressor wheel, journal bearing center section, and internally wastegated turbine housing for excellent spool characteristics and reliable power delivery.
Specifications:
• Power Range: 170–300 HP
• Engine Size: 0.8L–2.0L
• Compressor: 39mm Inducer / 52mm Exducer
• Compressor A/R: 0.59
• Turbine: 47mm Inducer / 42mm Exducer
• Turbine A/R: 0.55
• Internal Wastegate with Calibrated Actuator
• Journal Bearing Design
• T25 Inlet / 5-Bolt Outlet
• Garrett Part Number: 896053-5003S
Features:
• Forged fully-machined compressor wheel
• GTX Gen II compressor aero technology
• Billet extended-tip compressor design
• Oil-cooled center housing
• Compact footprint with GBC17/GBC22 interchangeable outline
• Supports up to 29 lb/min airflow and 3.7 pressure ratio capability
Perfect for compact automotive turbo builds, motorcycles, side-by-sides, personal watercraft, and other small-displacement performance applications requiring fast spool and strong midrange-to-top-end power. Genuine Garrett quality and engineering.
Please note this is a direct ship from the manufacturer - shipping times may vary based on stock status.
