Garrett GBC22-350
In stock — ready to ship
$1,026.24
$42.76/mo with Affirm · or 4 interest-free payments of $256.56 with Shop Pay
See financing options →送
Free crated freightShipped nationwide from Dallas & LA
保
90-day start-up warrantyGenuine JDM, imported direct
Questions about fitment?Call or text a real enthusiast — (469) 570-4113
→実証What we verify before it ships
- Compression & leak-down tested
- Auction grade documented
- Actual unit photographed — what you see ships
- Genuine JDM, imported from Japan

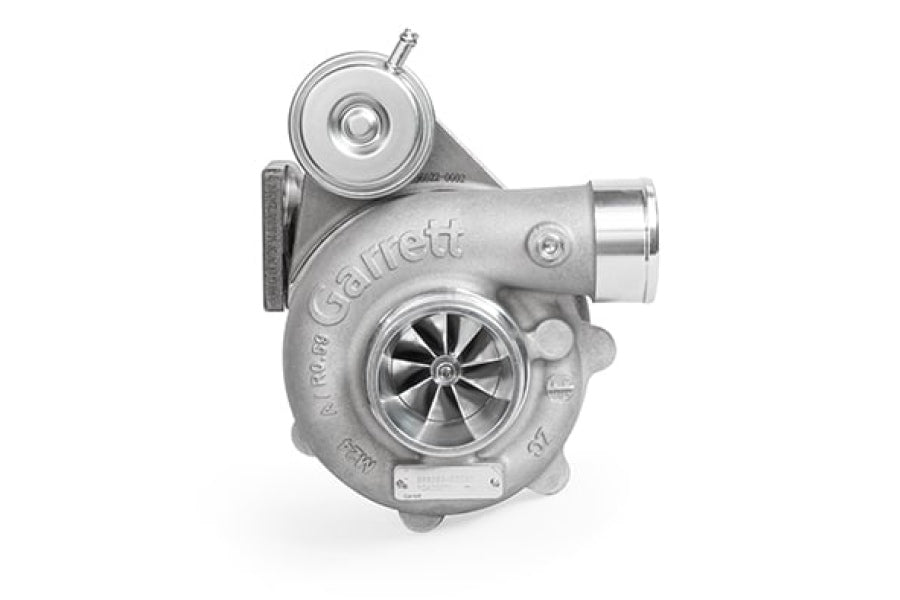

Garrett GBC22-350 Turbocharger (P/N 896055-5003S)
Brand new Garrett Boost Club Line GBC22-350 turbocharger. Designed for small-displacement performance engines ranging from 1.0L–2.5L and capable of supporting 200–350 horsepower. Features a forged fully-machined 44mm compressor wheel, GTX Gen II compressor aero technology, journal bearing center section, and internally wastegated turbine housing for fast spool, excellent efficiency, and reliable power delivery.
Specifications:
• Power Range: 200–350 HP
• Engine Size: 1.0L–2.5L
• Compressor: 44mm Inducer / 56mm Exducer
• Compressor A/R: 0.59
• Turbine: 50mm Inducer / 46mm Exducer
• Turbine A/R: 0.64
• Internal Wastegate with Calibrated Actuator
• Journal Bearing Design
• T25 Inlet / 5-Bolt Outlet
• Garrett Part Number: 896055-5003S
Features:
• Forged fully-machined billet compressor wheel
• GTX Gen II compressor aerodynamics
• Extended-tip compressor design for improved efficiency
• Oil-cooled center housing
• Supports up to 37 lb/min airflow
• Compact footprint interchangeable with GBC17 and GBC20 outlines
Perfect for compact automotive turbo builds, motorcycles, side-by-sides, personal watercraft, and other small-displacement performance applications requiring quick spool and up to 350 HP capability. Genuine Garrett engineering and reliability.
Please note this is a direct ship from the manufacturer - shipping times may vary based on stock status.
