JDM 96-00 Honda Civic D15B 1.5L SOHC *3 Stage* VTEC Engine

JDM 1996–2000 Honda D15B 1.5L SOHC 3-Stage VTEC Engine (OBD2) — Civic Ferio / Del Sol — Approx. 63,000 Miles

Genuine Japanese-domestic-market D15B 1.5L SOHC 3-stage VTEC inline-four, imported directly from Japan by JDM Alliance. The 3-stage D15B is the most capable of the D15 family and was never sold in the United States — it makes roughly 130 PS from 1.5 litres while still returning lean-burn economy, which is why it remains a popular JDM-only upgrade over a non-VTEC D-series. Serial D15B-3408193.

How 3-stage VTEC works
Most VTEC heads have two modes. This one has three, and it uses two separate solenoids to get there:

• Stage 1 — lean burn (low rpm, light load): one intake valve stays nearly closed, swirling the charge so the engine can run a very lean mixture. This is the economy mode.
• Stage 2 — 16-valve (mid rpm): both intake valves open on the mild cam lobes for normal driving.
• Stage 3 — full VTEC (high rpm): the rocker arms lock onto the aggressive third lobe for peak power.

Engine specs

• Engine code: D15B (3-stage VTEC, also called dual VTEC)
• Displacement: 1.5L SOHC 16-valve inline-4

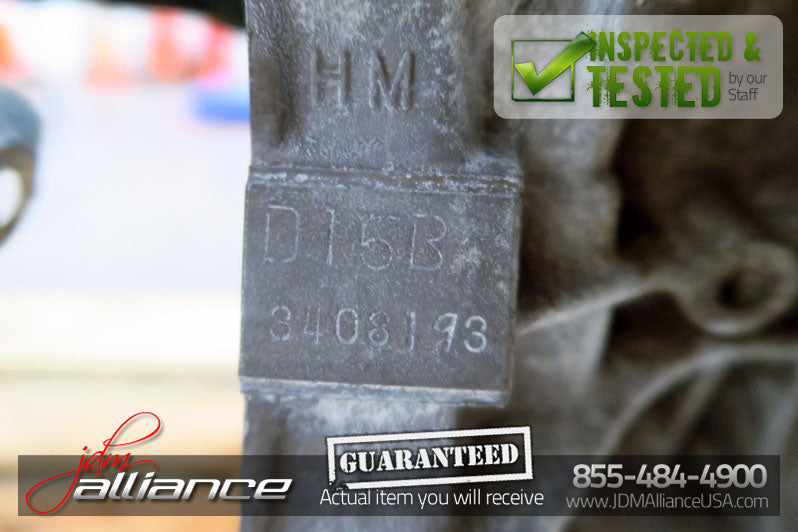

• Serial number: D15B-3408193
• Output: approximately 130 PS (JDM rating)
• Mileage: approximately 63,000 miles
• Engine management: OBD2
• Origin: imported direct from Japan

Compatible vehicles

• 1996–2000 Honda Civic Ferio VTi / EK3 (JDM, 3-stage VTEC)
• 1996–2000 Honda Civic — D-series upgrade / swap applications
• 1996–1997 Honda Del Sol — D-series upgrade / swap applications

What's included

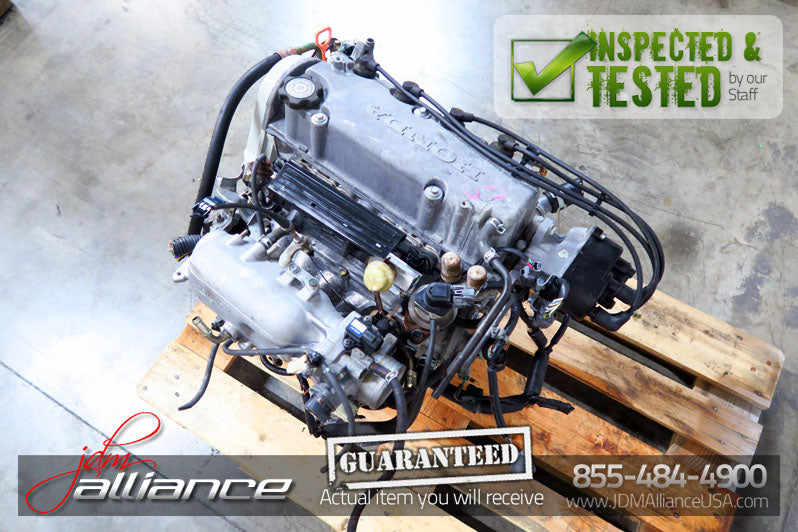

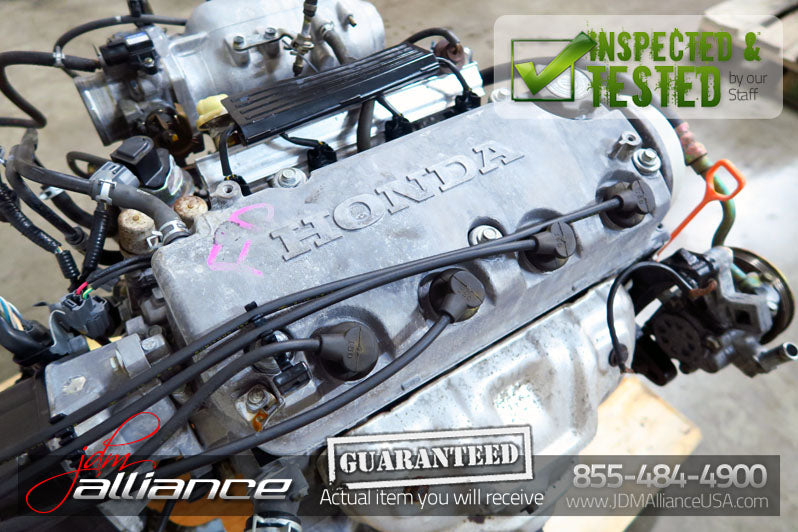

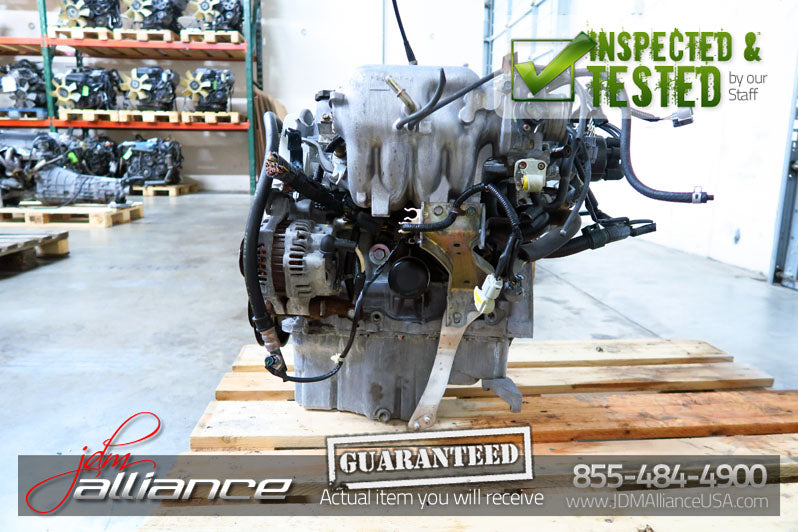

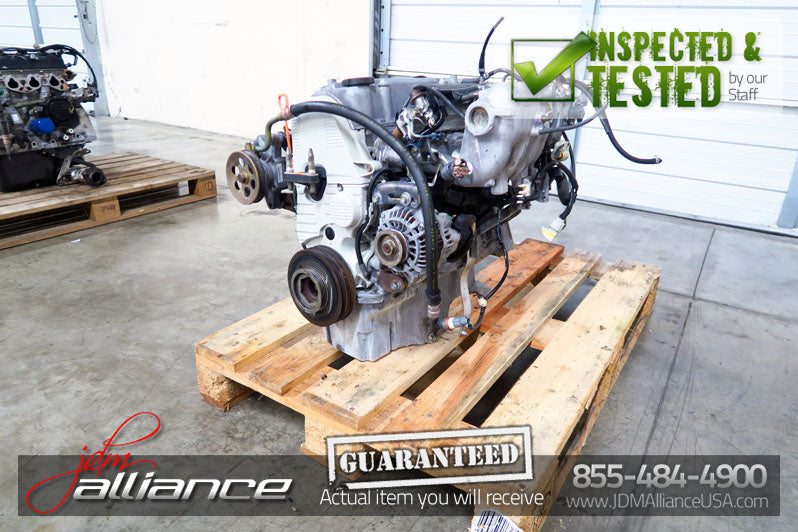

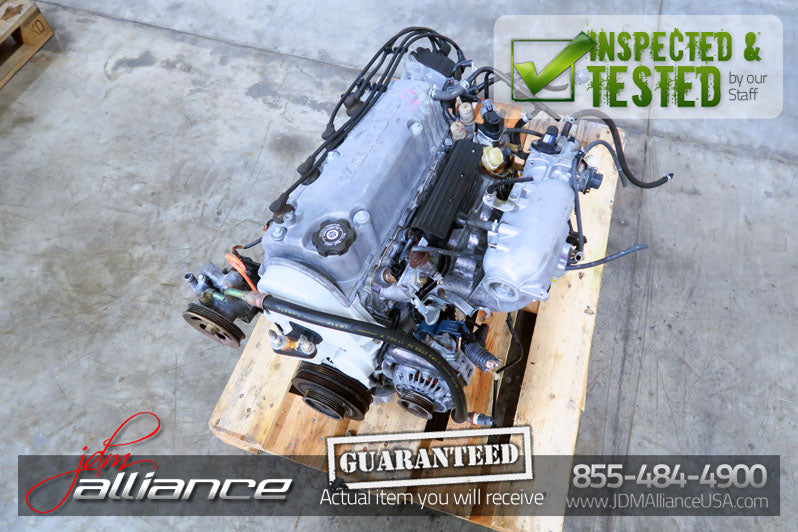

• Complete D15B 1.5L SOHC 3-stage VTEC engine — block and head

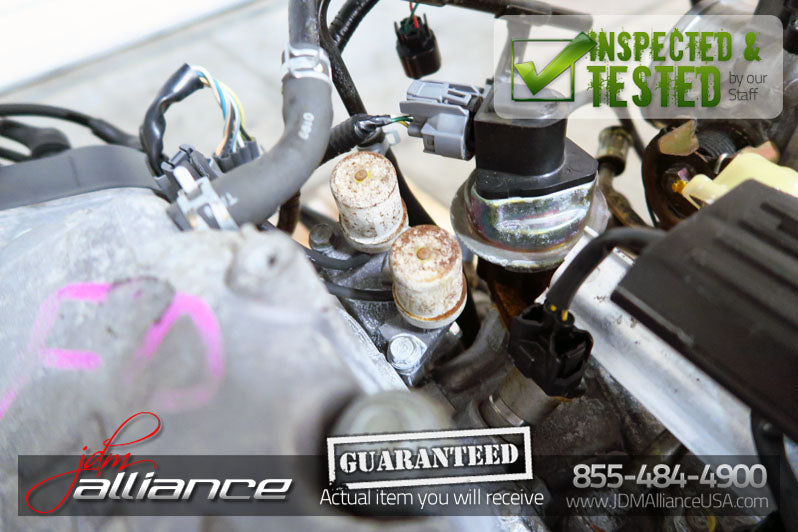

• Dual VTEC solenoids
• Fuel rail & injectors

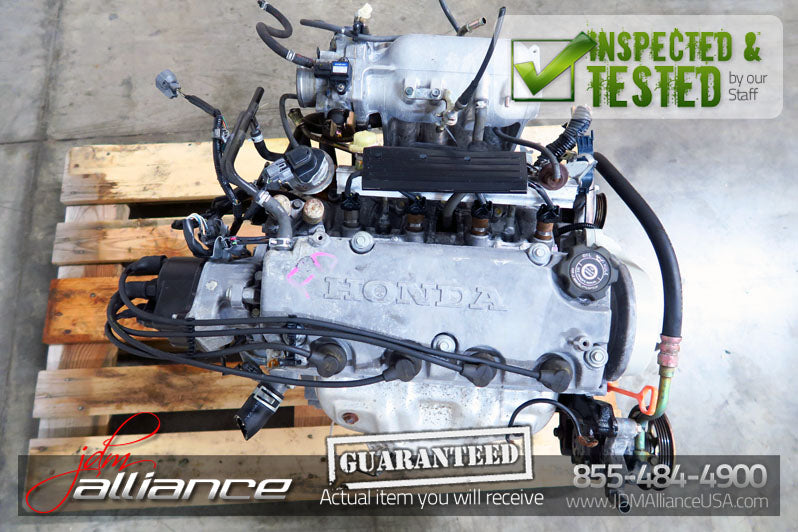

• Intake manifold

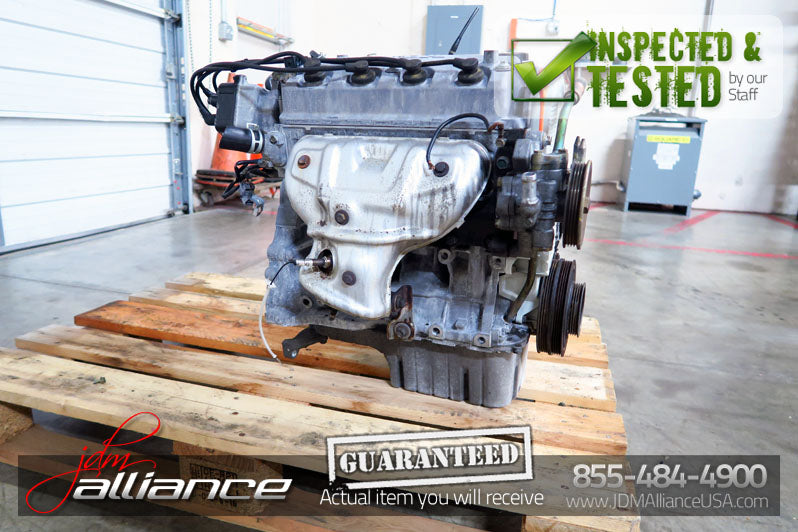

• Exhaust manifold
• Sensors
• Distributor

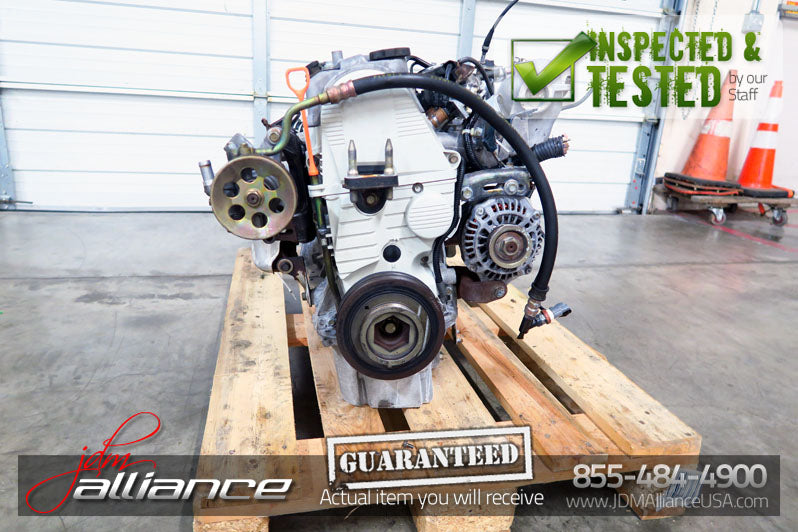

• Alternator
• Power steering pump

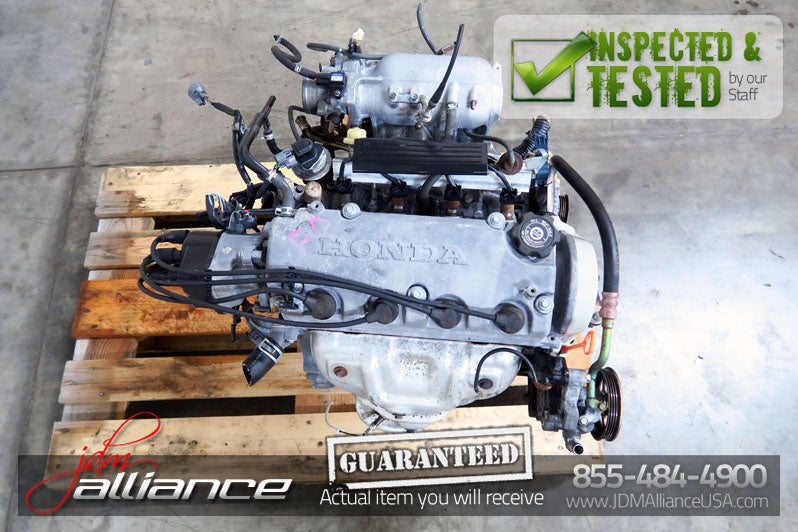

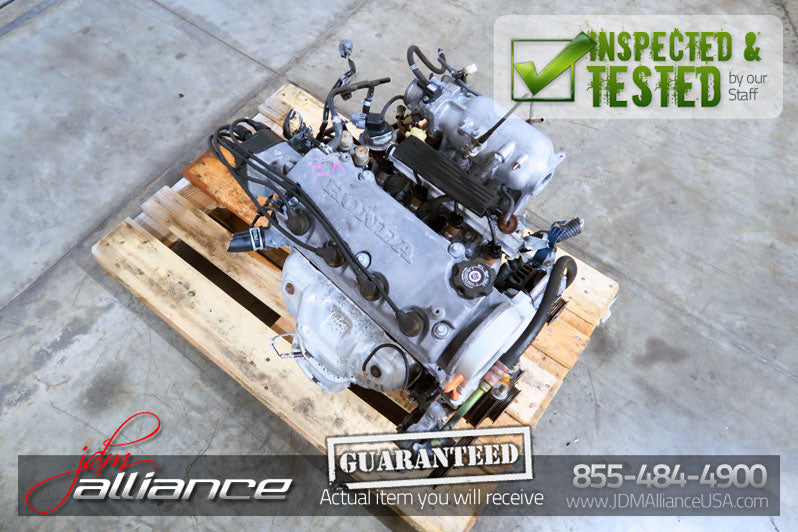

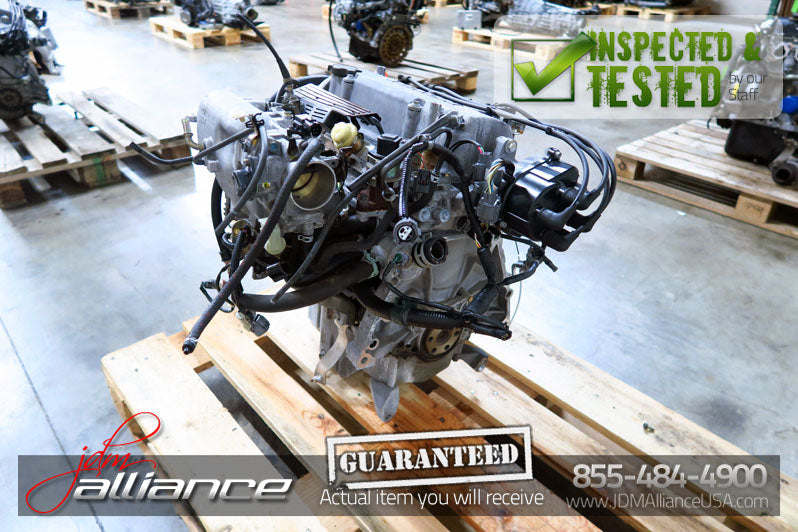

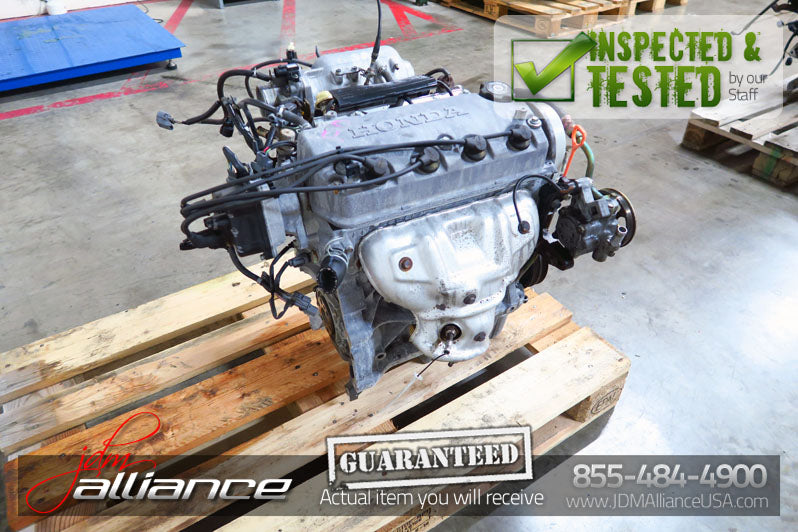

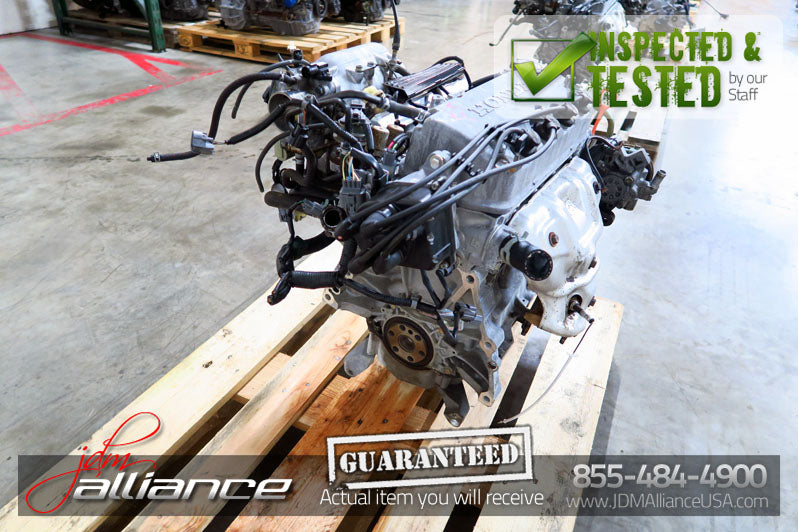

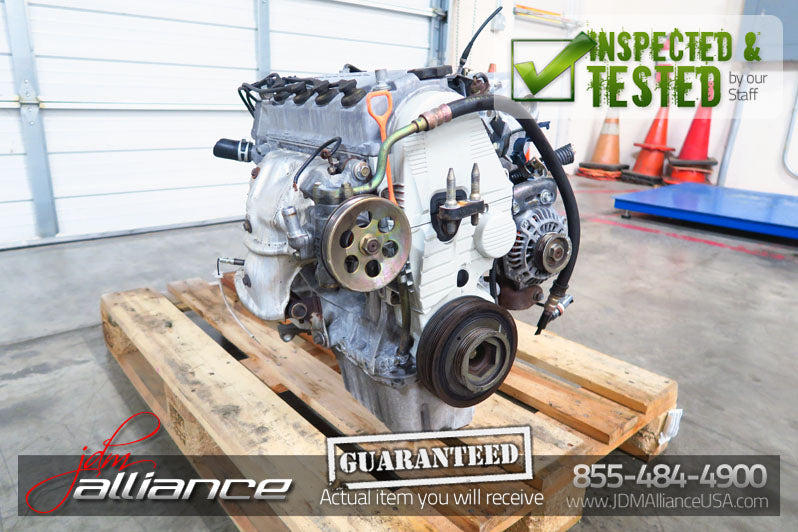

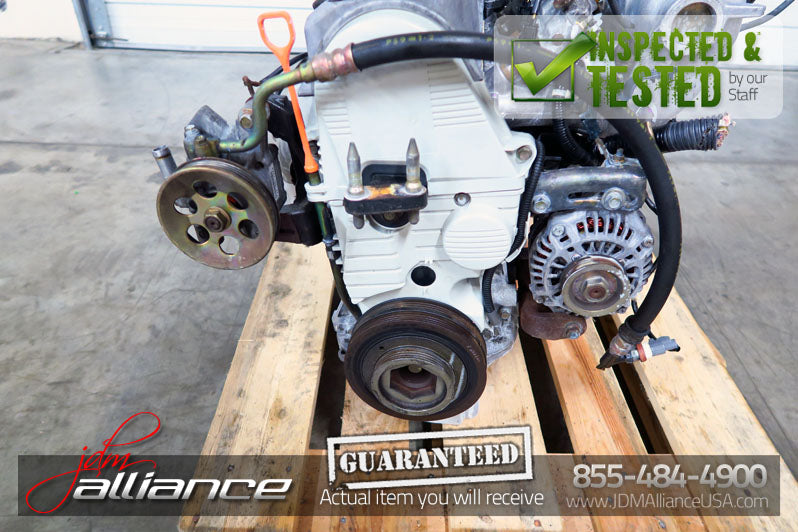

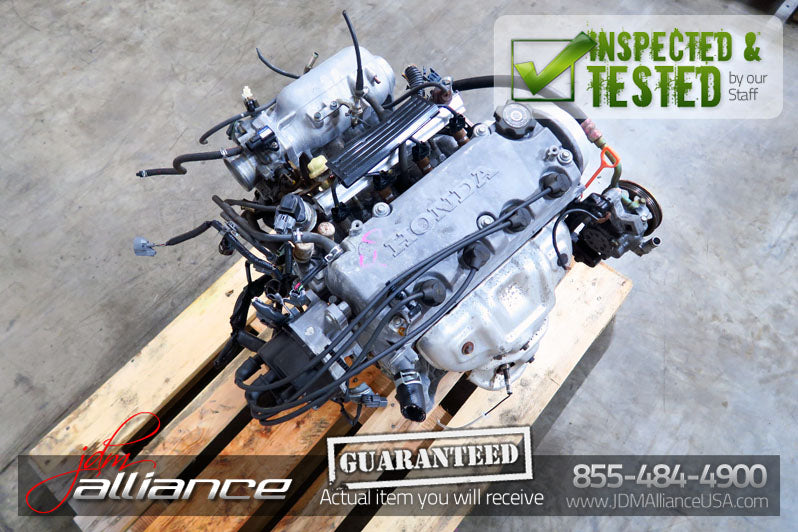

Anything else visible in the photos is included unless noted otherwise.

What you'll receive

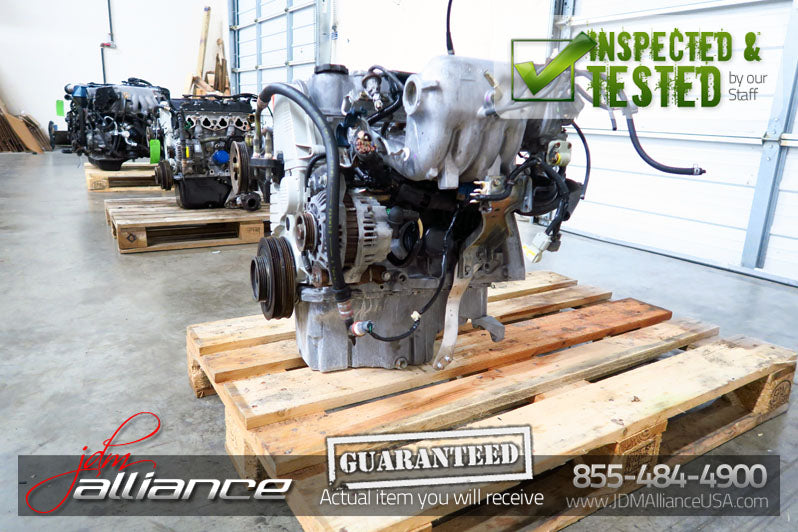

We stock multiple examples of most engines, and the unit photographed is one of them. If this particular engine has sold we'll match you to another in the same condition and mileage range. Before anything ships we send you photographs and the serial number of the actual engine you're getting — you approve it first.

What you'll need to run all three stages

• A 3-stage ECU. A U.S.-market Civic ECU cannot drive two VTEC solenoids. On a standard ECU the engine will start and run, but you'll lose lean-burn and you may set a check-engine light for the unused solenoid circuit.
• The matching engine harness, or your harness modified to feed the second solenoid and its oil-pressure switch.

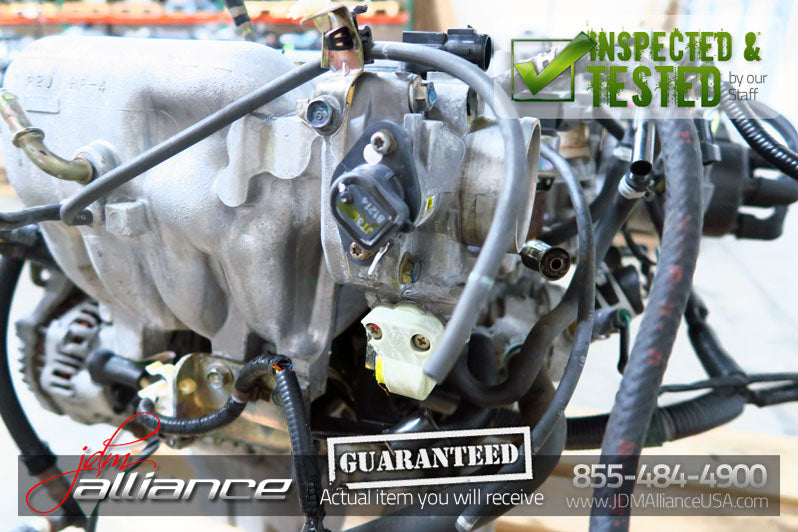

• The JDM intake manifold and throttle body (included here) — the 3-stage head's port layout differs from the U.S. D15.

Plenty of people run this engine on a standard OBD2 setup and are happy with it. Just go in knowing that without the correct ECU and wiring you're buying a strong D15 rather than a working 3-stage.

Not to be confused with

• D15Z1 (VTEC-E) — lean-burn only, no high-rpm stage.
• D15B7 — the U.S. non-VTEC 1.5.
• D15B single-cam VTEC — also badged D15B in Japan but a two-stage head. Check for the second solenoid on the head if you're comparing listings elsewhere.

Fitment
Depending on your application this may install as a long block with your original external accessories transferred over. Confirm fitment and supporting parts with your mechanic before ordering — call or text us and we'll help you check.

Warranty & returns
This is a performance engine — an upgrade over the non-VTEC D-series it replaces — and it carries our 30-day performance-engine warranty and a 30-day return window, not the 90-day start-up warranty that applies to like-for-like replacement engines. Full terms at jdm-online.com/pages/warranty.
